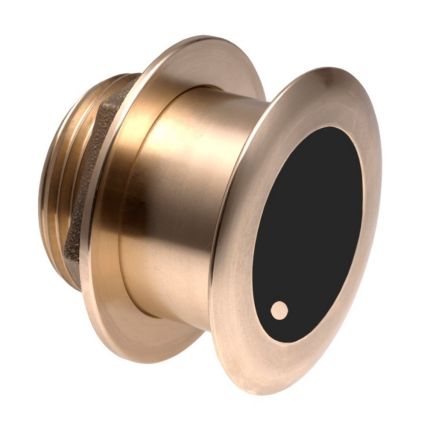

Airmar B175c-12-Mw Transducer Medium Wide Beam 12 Deg Tilt
Condition: New
Free Two Day Shipping*
Airmar B175MW Medium Ultra-Wide 12 deg Tilted Element™ Thru-Hull - requires Mix-N-Match Cable
Model: B175C-12-MW-MM- Fixed 12° tilted version for 8° to 15° hull deadrise
- Depth and fast-response water-temperature sensor
- 1 kW with depth tracking down to 400 m (1,300#39;)
- Medium frequency: 60-100 kHz
- 57° to 73° beamwidth (port/starboard)
- 16° average fore/aft
- 40 kHz of total bandwidth from one transducer
- Medium frequency for superior mid-depth performance and excellent fish-target separation
- Bronze housing for use on stepped, planing or displacement hull
- Low-profile, thru-hull housing yields good resolution at speed when installed properly
- Exclusive Xducer ID® technology
AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
Specifications| Power Rating | 1 kW |
| Housing | Bronze |
| Functions | Depth, Temperature |
| Hull Material | Fiberglass or wood |
| Max Vessel LOA | Up to 11 m (36') |
| Hole Size | 95 mm (3-3/4") |
| Mounting Style | Tilted Element Thru-Hull |
| Acoustic Window | Urethane |
| Cable-Length | 9 m (30') |
| Max Depth | 400 m (1300') |
| Medium Frequency | 60-100 kHz |
| Medium Frequency Beamwidth | 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) |
| Water Temperature | -10° to 40°C (14° to 104°F) |
| Cable End | Mix-N-Match |
Manufacturer Part Number: B175C-12-MW-MM
| Special Shipping Message | Free Two Day Shipping* |
|---|---|
| Manufacturer Part Number: | B175C-12-MW-MM |
