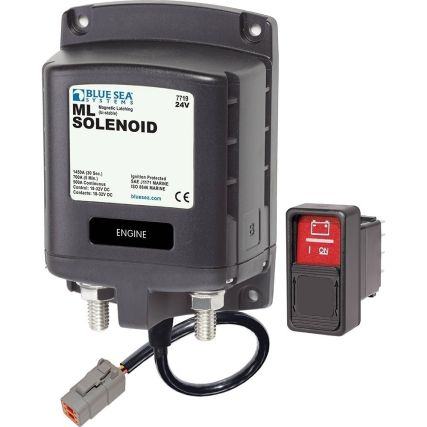

Blue Sea 7719100 - Ml-Series Solenoid Switch - Deutsch Connector - 24v
Condition: New
Free Ground Shipping*
Blue Sea 7719100 - Ml-Series Solenoid Switch - Deutsch Connector - 24v
7719100 - ML-Series Solenoid Switch - Deutsch Connector - 24V
For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.
Features:
- Silver alloy contacts provide high reliability for switching live loads
- LED output to remotely indicate switch state
- 3/8"- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
- One-piece stainless flange nuts for safe and secure connections
- Label recesses for circuit identification
Technical Specifications:
- Control Circuit Voltage - 20.2 to 32.9 V DC
- Control Circuit Connection - Deutsch DTM
- Nominal Voltage - 24V DC
- Coil Function - Auto-releasing
- Amperage Operating Current - OFF - 8mA and ON 13mA
- Mechanical Endurance - 100,000 Cycles
- Terminal Ring Diameter Clearance - 1.18" (30mm)
- Terminal Stud Length - .875" (22mm)
- Terminal Stud Size - 3/8" - 16 (M10)
In the Box:
- 7719100 Solenoid
- Contura Switch w/integrated LED
- Instruction Manual
*Sold as an Individual
Manufacturer Part Number: 7719100
| Special Shipping Message | Free Ground Shipping* |
|---|---|
| Manufacturer Part Number: | 7719100 |
