Garmin Onboard Wireless Mob/Engine Cutoff System

Garmin Onboard Wireless Mob/Engine Cutoff System

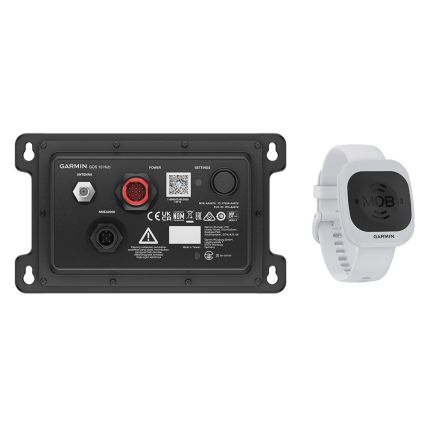

OnBoard™ Wireless MOB/Engine Cutoff System

TAG WHAT MATTERS

Built so you can move freely and boat confidently, the Garmin OnBoard system uses wireless tags instead of traditional tethered cords — integrating with your compatible Garmin chartplotter.

• Tags are worn on the wrist, a carabiner, or a key ring float
• Tags are designated as either captain or passenger
• Set the MOB tag as captain to enable engine cutoff
• Temporarily unprotect tags with ease
• The GOS 10 hub includes a loud external alarm
• The tag battery life exceeds a season of typical use

Captain Tag

Captain MOB detection will trigger engine cutoff, a MOB waypoint on the chartplotter, and an audible alarm on the MFDs and hub.

Wireless: No Strings Attached

The wearable MOB tags are part of a wireless MOB system - letting you move untethered while still being monitored.

Passenger Tag

Passenger MOB detection will trigger a MOB waypoint on MFDs plus an audible alarm on the MFDs and hub.

Engine Cutoff System

Should a captain tag trigger an MOB event, the system will cut power to the engines - letting the captain return to the vessel.

Captain or Passenger Tags

Through the Garmin chartplotter interface, you can designate each tag as either captain or passenger — changing their MOB action.

Waypoints

When paired to your compatible Garmin chartplotter, a waypoint will be marked at the location where the MOB tag lost connection with the vessel.

Audio Alarm

The GOS 10 hub includes a loud external alarm — alerting you to a MOB event.

Pair Multiple Tags

Provide peace of mind for up to 8 tags at a time.

Vast Compatibility

This product will work with any boat that has an engine cutoff switch.

What's In The Box?

• GOS™ 10 Hub
• 12-pin fused power and engine cut-off harness with external buzzer
• External antenna for wireless connection to MOB tags
• NMEA 2000® tee and 6 ft drop cable
• White wireless MOB tag
• CR2032 coin cell battery
• White 20 mm quick-release band
• Carabiner with 20 mm quick-release attachment
• Floating foam keychain
• Installation hardware
• Documentation

Specifications:

General:

• Number of tags supported: 8 simultaneous passengers and captains
• User Interface: Compatible Garmin Chartplotter
• MOB Alarm: External beeper and MFD alert
• Engine cutoff: Yes
• View MOB details on MFD: Yes
• View tag status on MFD: yes (battery life, signal strength, protection status)
• Manage tags on MFD: yes (arm/disarm, captain/passenger)
• Wireless engine kill: Yes

GOS™ 10:

• Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
• Weight: 171.7 g
• Wireless range: 66 ft (up to 20 m)
• Supply voltage range: 10-32V
• Operating temperature range: -15 °C to 70 °C
• Typical power consumption: 50mA @ 12 V or 0.6 W
• NMEA 2000 LEN®: 1
• Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
• Engine interface: Hardwired, in-line connection to ignition harness
• Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
• Water rating: IPX6 and IPX7
• Compass-safe distance: 5 cm

MOB Tag:

• Dimensions (HxWxD): 43.94 mm x 38.60 mm x 11.96 mm
• Weight: 21.5 g
• Wireless range: 66 ft (up to 20 m)
• Battery type: CR 2032 coin cell
• Battery life: > 1,200 hours of connected time
• View tag status on MFD: yes (battery life, signal strength, protection status)
• Water rating: IEC 60529 IPX8 (5 ATM)
• Attachment: Wrist strap or carabiner
