Garmin Gmr 424 Xhd2 Open Array Radar & Pedestal

Garmin Gmr 424 Xhd2 Open Array Radar & Pedestal

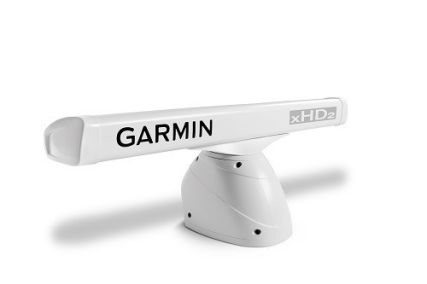

GMR™ 424 xHD2 Open Array Radar & Pedestal

4' Open Array Radar With 4kW of Power

Features:

• 4kW high-definition radar with 4-foot open array

• High sensitivity with 1.8 degree horizontal beamwidth for consistent target positions, excellent target separation and reliable operation

• Dual range radar with dual radar support

• No complex user settings; easy to install and start using

• Quiet rotation and reliable operation

High-Power xHD2 Radar With Narrow 1.8° Beam
This high-definition 4kW radar has the power to deliver excellent range, up to 72 nautical miles, even in fog or rain. Its narrow 1.8 degree horizontal beamwidth picks out targets well off in the distance. It paints a clear image of the shoreline, other vessels, and impending weather on your Garmin chartplotter. You get consistent target positions, excellent target separation and reliable operation. Its 8-bit true color imagery also helps you discriminate large targets from small ones and enhances target separation. Rotation speeds of 24 and 48 rpm with a max range scale of 72 nautical miles.

Bird Mode
Fishermen know, when you find birds at the water's surface, you'll also find fish. To further improve your fishing experience, use Bird Mode, which helps to locate birds at the water's surface where baitfish are also likely to be found.

Echo Trails
A historical "trail" is left on the screen to help you quickly and easily identify moving targets and potential collision threats.

Dual Range
Single radar antenna is capable of providing split screen images on your chartplotter for both close and long range.

Dual Radar Support
Provides redundancy and the ability for each display unit on the boat to select data from one of two different radar sources.

Dynamic Auto Gain
Dynamic Auto Gain automatically adjusts gain levels to optimum settings for harbors, near shore, and offshore in open waters.

Dynamic Sea Filter
Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea conditions.

Radar Overlay
Overlays the radar image on the chartplotter's map page.

MARPA Target Tracking
Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.

Guard Zone
Set the safety zone and receive an alarm when an object enters the zone.

VRM & EBL
Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

The Power of Simple...Radar
This radar is designed to be easy to install and use. There are no complex user settings to fuss around with, just install it and start using. You can rely on the GMR xHD2 to provide reliable, optimum performance in all conditions.

In the Box:

• GMR 424 xHD2

• Mounting hardware kit and template

• Power cable (15 meters)

• Network cable (15 meters)

• Cable grommet

• Documentation

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: K10-00012-08
