Simrad Nac-3 Autopilot Core Pack - Nac-3, Precision-9, Rf25n & N2k Starter Kit

NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

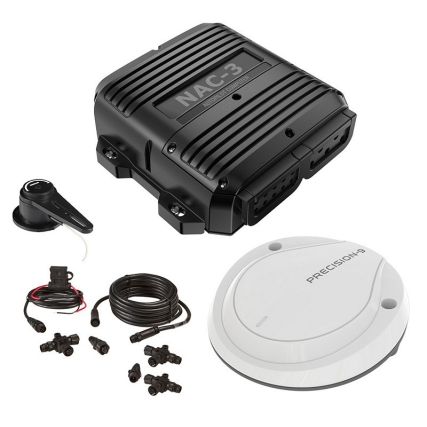

Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.

RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Specifications:
  • Temperature, operation: 0 to +55°C
  • Temperature, storage: -32 to +70°C
  • Protection: IPx7
  • Weight in Kg: 0.7kg, 1.6lbs
  • Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58"
  • Mounting: Bulkhead
  • Construction: Plastic
  • Color: Black
  • Cable inlet: Grommet (Spare Incl)
  • Local Power supply: 12/24 V DC +10-30%
  • NMEA 2000 Load Equivalent number (50mA): 1
  • Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s
  • On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA
  • Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A
  • Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000
  • NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA
  • Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
  • External alarm output for buzzer/relay: Max 100mA, voltage level as local supply
  • IEC 61162-1 input (NMEA0183 In): 1 ch
  • IEC 61162-1 output (NMEA0183 Out): 1 ch
  • IEC 61162-1 speed: 4.8 & 38.4 kbaud
  • NMEA2000: Certified (pending)


Manufacturer Part Number: 000-13336-001
More Information
Rebate Promo Message Save up to $4,000 w/Qualifying Purchases
Special Shipping Message Free Two Day Shipping*
Manufacturer Part Number: 000-13336-001
Specifications:
  • Steering Type = Hydraulic
