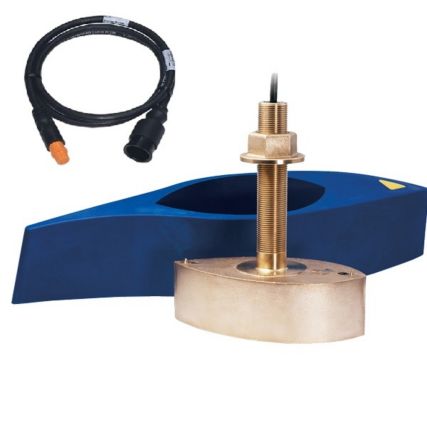

Airmar B275lh-W Bronze Chirp Thru-Hull F/Garmin W/12-Pin Connector
B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector
Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducers with wide-beam coverage.
The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).
Features:
- Garmin 12-Pin Mix & Match Cable for Chirp Transducers
- Depth and fast-response water-temperature sensing
- 1KW of power for great deep-water performance from the low frequency
- Low frequency: 42 to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000')
- High frequency: 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth of 152 m (500')
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper water column
- Bronze housing with High-performance Fairing for optimal performance at higher speeds
- Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
- Patented Xducer ID® technology
Specifications
- Brand: Airmar Technology
- Acoustic Window: Urethane
- Cable-Length: 10 m (33')
- Common Use: Fishing, Commercial Fishing
- Connector: Garmin 12-Pin
- Country of Origin: USA
- Cross Reference: 010-12183-20
- Deadrise Range: Up to 28° with fairing
- Display Connector: 12G
- Frequency Band: Low-High Wide
- High Frequency: 150-250 kHz
- High-Wide Beamwidth: 25°
- Low Frequency: 42-65 kHz
- Low Frequency Beamwidth: 25°-16°
- Material: Bronze
- Max Deadrise: Up to 20° with fairing
- Max Depth: Low frequency- 914 m (3000'), High wide frequency- 152 m (500')
- Mix and Match Series: 12-Pin Chirp
- Sensor Connector: MMC
- Single or Dual Frequency: CHIRP-Ready Dual-Band
- Tilted Element: No
- Weight: 7.3 kg (16 lbs.)
- Power Rating: 1 kW
- Max Deadrise Angle: 20°
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Mounting Style: Thru-Hull with Fairing
- Max Vessel LOA: 8 m (25') and above
- Hole Size: 30 mm (1-3/16")
- Usable Shaft Length: 121 mm (4.75")
Manufacturer Part Number: B275C-LHW-12G
