Airmar B75c-12-L 12d Tilt Low Chirp Furuno 10-Pin Cable

Airmar B75c-12-L 12d Tilt Low Chirp Furuno 10-Pin Cable

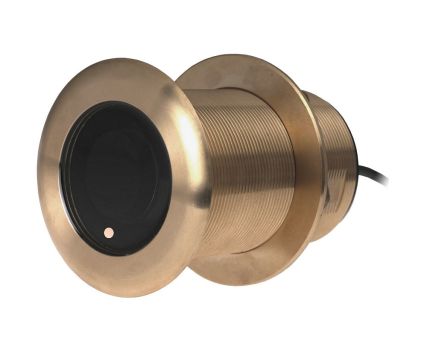

Airmar B75C-12-L 12d Tilt Low CHIRP with Furuno 10-Pin Mix-N-Match Cable

Model: B75C-12-L-10F

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• 300 W of power with a maximum depth of 353 m (1200')
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull

Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

Specifications

Cable-Length	9 m (30')
Deadrise Range	8 to 16°
Frequency Band	Low
Low Frequency	40-75 kHz
Low Frequency Beamwidth	32°-21°
Max Depth	366 m (1200')
Power Rating	300 W
Retractable housing	No
Single or Dual Frequency	CHIRP-Ready Single-Band
Transducer Functions	Depth, Temperature

What's in the Box:

• B75C-12-L-MM
• MMC-10FL Cable

Manufacturer Part Number: B75C-12-L-10F
