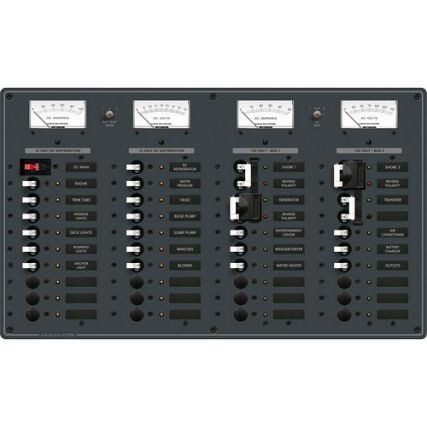

Blue Sea 8086 Ac 3 Sources +12 Positions/Dc Main +19 Position Toggle Circuit Breaker Panel - White Switches

Condition: New

$1,402.55
Quantity in Stock: 1
SKU
BLU8086

Free Ground Shipping*

To Ship Out Next Business Day, Order This Item in the Next


Blue Sea 8086 Ac 3 Sources +12 Positions/Dc Main +19 Position Toggle Circuit Breaker Panel - White Switches

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

Features:

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage
    • 100 Amperes DC
    • 50 Amperes AC

AC Features:

  • Two separate AC load groups with transfer switch to combine into one load group
  • Switch allows Ammeter and Voltmeter to read either AC load group
  • Reverse polarity indicators on both AC load groups
  • Ready for installation of optional 4031 AC Isolation Cover
  • 9353, 0-150 Volt AC Voltmeter
  • 9630, 0-50 Amp AC Ammeter

DC Features:

  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter

Specifications:

  • AC Positions: Source Selectors +12
  • DC Positions: Main +19
  • 120 Volts AC
  • 12 Volts DC
  • (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
  • (1) 100A - (13) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



Manufacturer Part Number: 8086
