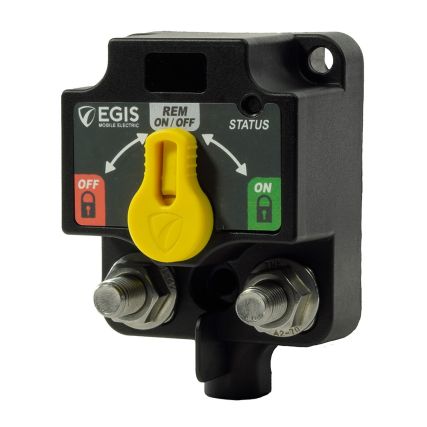

XD Series Single 500 Amp Heavy Duty Battery Switch/Mechanical Contactor

Features:

• Silver Alloy Contact Points support high ampere/full voltage switching capability versus legacy rotary style switches.
• Expandable: Integrate the 8700 XD Battery Disconnect easily with XD Series FLEX/ACR/LVD relays via using optional 8790 Link and 8791 Cross Link Busbars for easy integration with other Single, Dual, or Triple Circuit XD relays.
• Terminal Stud Protection: Included protective cover with convenient label recesses ensures no accidental shorts occur and allows for easy identification of circuits long term.
• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control: Bright yellow knob and intuitively easy-to-read on/off label simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state.
• Ignition Protected: Safe for installation in gasoline-powered boats and other combustible installation environments.
• Sealed IP67 Construction keeps moisture out, and the integrated Gore-Tex pressure regulation vent increases its ability to operate reliably for long-term harsh environment operation.
• Compact Case Design allows for easy surface mount or rear panel installs, and the rectangular shape (narrower than competing products) makes finding a mounting location easy.

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Terminal Stud Size (mm): M10
• Voltage Range (VDC): 8-36
• Ingress Protection: IP67/IP6K 9K
• Contact Materials: Silver Alloy

Focal Features:

High Visibility Knob

Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.

Smaller Footprint

XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.

Integrated Vent

High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
