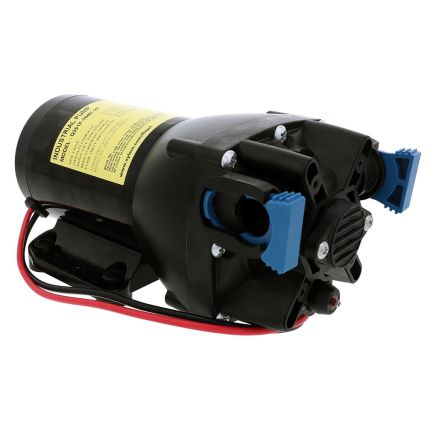

Flojet Versijet 4 Chamber Diaphragm Pump - 24v, 3.5 Gpm, 50 Psi
Condition: New
Free Ground Shipping*
Flojet Versijet 4 Chamber Diaphragm Pump - 24v, 3.5 Gpm, 50 Psi
VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI
Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2" straight hose barbs.
Features:
- Heavy-duty, coated motor
- Long-life co-molded diaphragm
- Efficient, quiet operation
- Self-priming
- Runs dry without damage
- 4-chamber diaphragm
- Quick-connect ports
- TENV permanent magnet motor
- Noise-dampening baseplate
- Thermal motor protection (TCO)
Applications:
- Liquid Transfer
- Spraying
- Cooling
- Circulation
- Filtration
- Dispensing
Specifications:
- Product Number: Q352F-16N7-2P
- Port Fittings: 2 x 1/2" (13mm) straight hose barb
- Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
- Pressure Switch Cut-Off: No switch
- Max Operating Pressure: 50 PSI (3.4 BAR)
- Max Inlet Pressure: 30 PSI (2.2 BAR)
- Internal Bypass: Yes
- Fluid Temperature Range: 32° F - 140° F (0° C - 60° C)
- Self-Priming Capability: Up to 8ft (2.4m) dry prime
- Run-Dry Capable: Yes
- Nominal Voltage: 24 VAC
- Max Current Draw: 5.3 Amps @ 50 PSI (3.4 BAR)
- Fuse Size: 7 Amps (not included)
- Duty Cycle: Intermittent
- Leads: 12" (305mm), 14 AWG (2.5mm^2)
- Wire Connection: Stripped wire
- Weight (pump only): 5.1 lbs.
Materials:
- Upper Housing: Glass-filled polypropylene
- Lower Housing: Cast aluminum
- Check Valve Retainer: Polypropylene
- Diaphragm: Santoprene
- Check Valves: Viton
- Switch diaphragm: Viton
- Bypass Diaphragm: Viton
- PH Seals: Viton
- PH Fasteners: Stainless steel
- Baseplate: Nylon with Rubber Feet
- Motor Casing: Cast aluminum; coated steel
Manufacturer Part Number: Q352F-16N7-2P
| Special Shipping Message | Free Ground Shipping* |
|---|---|
| Manufacturer Part Number: | Q352F-16N7-2P |
