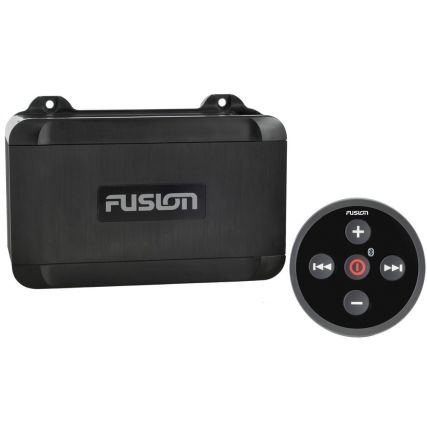

Fusion Ms-Bb100 Marine Black Box Am/Fm/Bt - 2 Zone

100% of 100

Condition: New

Quantity in Stock: 22

Free Two Day Shipping*

To Ship Out Next Business Day, Order This Item in the Next

Fusion Ms-Bb100 Marine Black Box Am/Fm/Bt - 2 Zone

MS-BB100 Marine Black Box AM/FM/BT - 2 Zone

Introducing the MS-BB100, a compact black box entertainment solution that incorporates the marine industry supported Fusion-Link protocol and Fusion's proven marine engineering skillset to deliver a boat load of tunes.  An industry first, the BB100 includes an easy touch Bluetooth embedded IPx7 water resistant remote for quick audio adjustments.  Supplied with a 2m (6.6ft) connection cable, the wired remote is ideally shaped for hassle free installation onto a dash or boat console.

With the Bluetooth receiver embedded into the remote we can reduce the likelihood of interference occurring between your smartphone and the receiver.  Engineered for either a flush or flat mount installation, you can choose the finish to suit your vessel.

NMEA 2000  Ready for connection and control from any supported Multi-Function Display - The MS-BB100 is a Fusion-Link Wired NMEA 2000 certified product and is compatible with a range of the world’s leading Multi-Function Displays for on-screen audio control. When pairing the MS-BB100 with a supported chartplotter or fish finder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time. In addition to MFD control, the BB100 will connect to any Fusion NRX series remote control attached to the same powered NMEA 2000 network for localized control of the audio zones

Fusion-Link™ makes control of your stereo easier than ever.  Quickly find your favorite song, tune in to the sports or turn up the volume all from your partnered multifunction display (MFD), compatible smartphone, Garmin Handheld or Garmin watch.  With the app installed, you can enjoy source navigation and track selection from wherever you are on your boat.

Multi-Zone Control With two independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone.


  • Small footprint Black Box design with included Bluetooth embedded wired remote
  • IPx7 water resistant wired remote with quick Bluetooth pairing
  • Flush or flat mounting remote control installation options
  • Fusion-Link NMEA 2000 Ready for connection and control from any supported Multi-Function Display
  • Multi-Zone™ Technology – Two independent audio zones are available, each with advanced localized menu controls, including zone naming
  • True-Marine™ Designed and Engineered – Extensively tested to perform in the harsh marine environment

Technical Specifications:

  • 2 Zones
  • 200 Watts peak power
  • NMEA 2000 compatible
  • Class AB Amplifier
  • Rear USB connection
  • Dimensions (W/H/D) - 6-1/8" x 2-3/8" x 3-11/16"
  • Remote Dimensions (Diameter/Depth) - 2-9/16 x 3/16"

In the Box:

  • Media Black Box
  • Remote - Wired
  • Remote Mounting Hardware/Gasket
  • Remote Mounting Template
  • 6' NMEA 2000 Drop Cable
  • Power Wiring Harness
  • Aux/Line-out Harness
  • Documentation

*SiriusXM Promotion - Get 3 Free Months SiriusXM Streaming Service - LINK

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 010-01517-01
More Information
Special Shipping Message Free Two Day Shipping*
Manufacturer Part Number: 010-01517-01
  • NMEA 2000 = Yes
  • Auxiliary Input = Yes
  • Bluetooth = Yes
  • Color = Black
  • Cover Included = No
  • Power - Output (Watts) = 200
  • RCA Input = Yes
  • RCA Output = Yes
  • SiriusXM Ready = No
  • Wired Remote Capable = Yes
  • Wireless Remote Capable = Yes
