Garmin Gmr 18 Hd+ Dome Radar

Rating:
98% of 100

Condition: New

$1,109.76
Quantity in Stock: 35
SKU
GAR010-01719-00

Free Ground Shipping*

To Ship Out Today, Order This Item in the Next

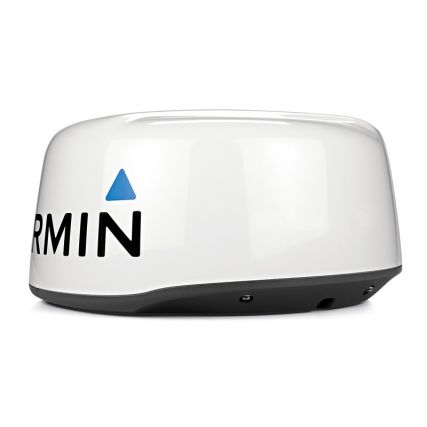

Garmin Gmr 18 Hd+ Dome Radar

GMR 18 HD+ Dome Radar w/ 15m cable

The compact GMR 18 HD+ dome radar is a good choice for boats with limited room for radar placement. It delivers 4 kW of transmit power and clear echo definition at all ranges to enhance situational awareness. Overlay radar images onto your chartplotter map page; however, for best overlay results, an optional autopilot or heading sensor is recommended. It also helps you avoid traffic on the water. GMR 18 HD+ provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately).

Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions. Dynamic Sea Filter automatically adjusts sea clutter, depending on sea conditions. GMR 18 HD+ features 8-bit true color resolution for a clear presentation on your chartplotter screen. It has a maximum range of 36 nautical miles with a minimum range of 20 meters and a rotation speed of 24 RPM. There are no complex user settings, and it’s easy to install and start using.

Features:

  • Streamlined 18-inch 4kW dome radar
  • Deliver 4kW of transmit power and clear echo definition at all ranges
  • Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
  • Dynamic Sea Filter automatically adjusts gain to changing sea conditions
  • Overlays the radar image on the chartplotter map page (autopilot or heading sensor is recommended for best results)
  • MARPA target tracking when combined with a multifunction display and heading sensor (sold separately)
  • Beam angles: 5.0° horizontal, 25° vertical
  • Max range: 36 nautical miles
  • Minimum range: 20 meters
  • Rotation speed: 24 revolutions/minute
  • No complex user settings; easy to install and start using

Comes with:

  • GMR 18 HD+ radome
  • Mounting hardware kit
  • Power cable (15 m/49.21 ft)
  • Network cable (15 m/49.21 ft)
  • Installation instructions
  • Mounting template

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.



Manufacturer Part Number: 010-01719-00

More Information
Special Shipping Message Free Ground Shipping*
Manufacturer Part Number: 010-01719-00
Specifications:
  • Array Size (Inches) = 18"
  • Power - Output = 4kW
  • Range - Max (Miles) = 36nm
Write Your Own Review
You're reviewing:Garmin Gmr 18 Hd+ Dome Radar
Your Rating
Customer Questions
Will this work with the 942xs
Yes, the Garmin Gmr 18 HD+ is compatible with the GPSMAP 942xs.
Can you find birds and lobster pots with this radar?
This radar does not have MotionScope technology so it will not have those functions.
Will this work with 1242xbs
Yes, this is compatible with the Garmin GPSMAP 1242XSV
Does this come with a mast mount?
In the box: GMR 18 HD+ radome Mounting hardware kit Power cable (15 m/49.21 ft) Network cable (15 m/49.21 ft) Installation instructions Mounting template
will with radar work with a 740s
Yes, Garmin lists the GMR 18 HD+ as a compatible radar for the 740s
Will this work with the Echomap Ultra 100/120 series?? Is it easy to hook up?? Plug and play?
This is not compatible with the Echomap series units.
Does this work with with Garmin 8612xsv?
Yes, this is compatible with the 8612xsv.
What is this unit compatible with?
Here is what this unit is compatible with: https://buy.garmin.com/en-US/US/p/556888/pn/010-01719-00#devices
Will this work with the Garmin 1040XS ?
Yes, the Garmin GMR 18 HD+ is compatible
