Garmin Gos 10 Hub F/Garmin Onboard System
Condition: New
Free Two Day Shipping*
Garmin Gos 10 Hub F/Garmin Onboard System

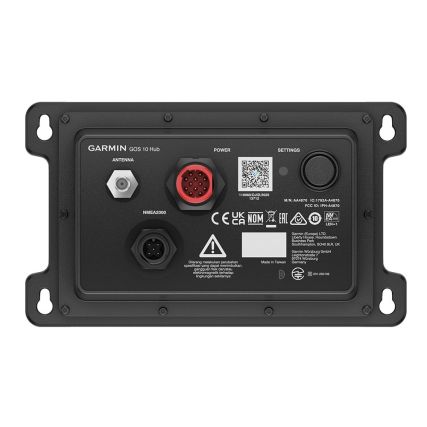

GOS™ 10 Hub for Garmin OnBoard™ System
Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessel’s engine harness to provide Engine Cut Off System (ECOS) functionality.
What's In The Box?
- GOS™ 10 Hub for the Garmin OnBoard System
- 12-pin fused power and engine cut-off harness with external buzzer
- External antenna for wireless connection to MOB tags
- NMEA 2000® T-connector
- NMEA 2000 drop cable
- Installation hardware
- Documentation
Specifications:
- Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
- Weight: 171.7 g
- Wireless range: 66 ft (up to 20 m)
- Supply voltage range: 10-32V
- Operating temperature range: -15 °C to 70 °C
- Typical power consumption: 50mA @ 12V or 0.6W
- NMEA 2000 LEN®: 1
- Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
- Engine interface: Hardwired, in-line connection to ignition harness
- Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
- Water rating: IPX6 and IPX7
- Compass-safe distance: 5 cm
Manufacturer Part Number: 010-02908-10
| Special Shipping Message | Free Two Day Shipping* |
|---|---|
| Manufacturer Part Number: | 010-02908-10 |
