Tilted Element™ Thru-Hull

Minimize Your Drag

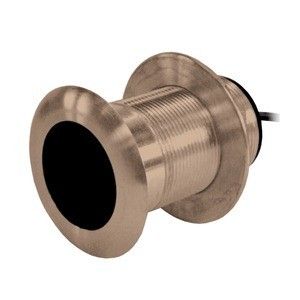

The B619 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The bronze B619 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications

Cruising powerboats and sailboats
Sailboats

Features

Depth only or Depth and temperature
Fixed 12° tilted versions for 8° to 15° hull deadrise
Right angle cable exit offers low headroom and protection when transducer is stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Housings are ABYC H-27 compliant
Optional temperature sensor
Bronze housing
Boat Size: Up to 9M (30')

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 010-10217-21

More Information
Special Shipping Message	Free Ground Shipping*
Manufacturer Part Number:	010-10217-21
Specifications:	Imaging = Standard Chirp = No Cable Length (Feet) = 30' Temperature = Yes Speed Included = No Pins = 8 Mounting Style = Thru-Hull
