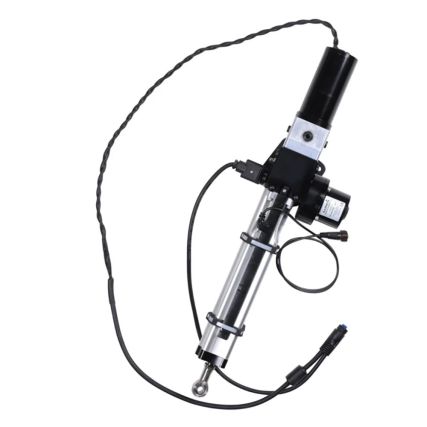

Garmin Class B Compact V2 Drive Unit

Class B Compact v2 Drive Unit

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Specifications:

  • Dimensions (WxHxD, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
  • Drive unit type: Integrated hydraulic linear
  • Stroke length: 10" (254 mm)
  • Maximum thrust: 1,610 lbs (730 kg)
  • Supply voltage: 10V to 30 V (regulated to 12V by the ECU)
  • Average clutch current at 12V: 1 Amp
  • Average motor current at 12V: 2-4 Amps
  • Operating temperature: -15° C to 50° C


Manufacturer Part Number: 010-12029-01

More Information
Special Shipping Message Free Two Day Shipping*
Manufacturer Part Number: 010-12029-01
Specifications:
  • Steering Type = Hydraulic
