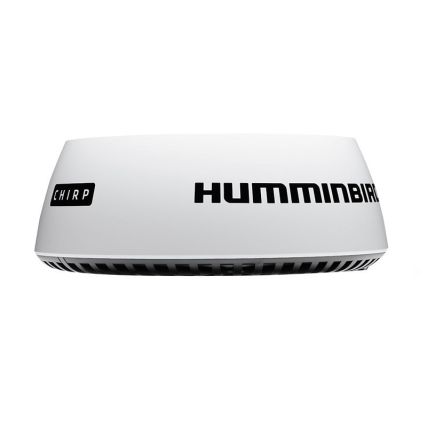

Humminbird Hb2124 Chirp Radar

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:
  • Antenna Dimension - 21" Enclosed Dome
  • Antenna Type - Patch Array
  • Peak Power Output - 20W
  • Transmit Frequency - 9354 to 9446 MHz
  • Beam width (nominal) - 4.9° Horizontal and 20° Vertical
  • Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
  • Networking - Ethernet
  • Maximum Range Scale - from 1/16 to 24 nautical miles
  • Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
  • Duplexer - Circulator
  • Pulse Widths @ 3 dB - 40 ns to 14.7µs
  • CHIRP Lengths - 400 ns to 20µs
  • CHIRP Bandwidth - Up to 32 MHz
  • IF Bandwidth - 26 MHz
  • Noise - Less than 4 dB
  • Polarization - Horizontal
  • Waterproofing - IPX6
  • Weight - 12.3 lbs (5.6 kg)
  • Compatibility Networking HELIX models and all ONIX models


Manufacturer Part Number: 750013-1
More Information
Special Shipping Message Free Ground Shipping*
Manufacturer Part Number: 750013-1
Specifications:
  • Array Size (Inches) = 21"
Write Your Own Review
You're reviewing:Humminbird Hb2124 Chirp Radar
Your Rating
Customer Questions
What are the dimensions of the unit?
Does this work with a Solix? They only have Helix and Onix listed.
Yes, this is compatible with the following: Compatible with all SOLIX Series, all HELIX 12 Series, all HELIX 10 Series, all HELIX 9 Series, select networking HELIX 7 Series models (HELIX 7 CHIRP GPS G2N, HELIX 7 CHIRP DI GPS G2N, HELIX 7 CHIRP SI GPS...
