Icom M510 Vhf Marine Radio

Condition: New

Quantity in Stock: 79

Free Two Day Shipping*

To Ship Out Next Business Day, Order This Item in the Next

Icom M510 Vhf Marine Radio

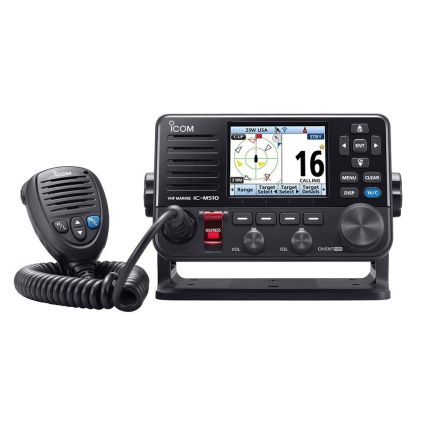

M510 VHF Marine Radio

Icom’s Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse.  The M510 is nearly half the depth of the M506, allowing installation in more confined spaces.  The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate.

Use the RS-M500 app (for iOS™/Android™) to remotely control the M510 through WLAN.  Up to three smart devices can be used as a wireless microphone or remote controller in substitute for the COMMANDMIC™.

Intercom function between your smart device and the radio is also available.


  • Large color display - 3.5" TFT LCD
  • S-M500 app ( iOS® or Android™) allows you to connect three (3) smart devices to function as a wireless command speaker/microphone
  • Hand microphone with AquaQuake™
  • Front and back microphone connection ports
  • Optional voice scrambler
  • External speaker connection
  • Supports 4-digit channels
  • Option to connect external GPS

Technical Specifications:

  • Output Power - 25W
  • Frequency Range - Transmit - 156.025 to 157.425 MHz
  • Frequency Range - Receive -  156.050 to 163.275 MHz
  • Waterproof Rating - IP68
  • GPS - Built-in
  • WLAN - Built-in
  • Connectivity - NMEA 0183 (NMEA 2000™ with the addition of the CT-M500)

In the Box:

  • M510 VHF radio
  • Speaker microphone (HM-250RB)
  • DC Power cable
  • Microphone hanger
  • Mounting bracket kit
  • Instruction manual

*Sold as you Individual

Manufacturer Part Number: M510 11
More Information
Special Shipping Message Free Two Day Shipping*
Manufacturer Part Number: M51011
  • AIS = No
  • Built-In GPS = Yes
  • Color = Black
  • Hailer = Optional
  • Intercom Capability = Yes
  • Listen-Back = Yes
  • NMEA 2000 = Optional
  • Remote Mic Capable = Yes
  • Scrambler Capable = Yes
