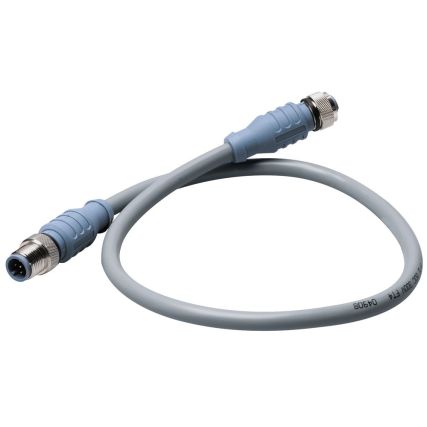

Maretronmicro Double-Ended Cordset - 0.5m - *Case Of 6*

Condition: New

$138.97
Quantity in Stock: 0
SKU
MARCM-CG1-CF-00-5CASE

Free Ground Shipping*

Out of Stock - Expected Ship date: Thu May 30, 2024 to Wed Jun 19, 2024


Maretronmicro Double-Ended Cordset - 0.5m - *Case Of 6*

Micro Double-Ended Cordset - 0.5M - *Case of 6*

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59" Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
  • (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved


Manufacturer Part Number: CM-CG1-CF-00.5CASE
More Information
Special Shipping Message Free Ground Shipping*
Manufacturer Part Number: CM-CG1-CF-00-5CASE
Specifications:
  • Cable Length (Feet) = 2'
