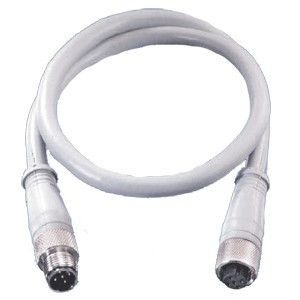

Maretron Micro Double-Ended Cordset - 4 Meter

Condition: New

$34.06
Quantity in Stock: 12
SKU
MARMDND22A-M040

Free Ground Shipping*

To Ship Out Next Business Day, Order This Item in the Next
Bread Checkout

Maretron Micro Double-Ended Cordset - 4 Meter
Maretron Micro Double Ended Cordset 4 Meter


Mechanical
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59?Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Manufacturer Part Number: CM-CG1-CF-04.0
  • More Information
    Special Shipping Message Free Ground Shipping*
    Manufacturer Part Number: MDND22A-M040
