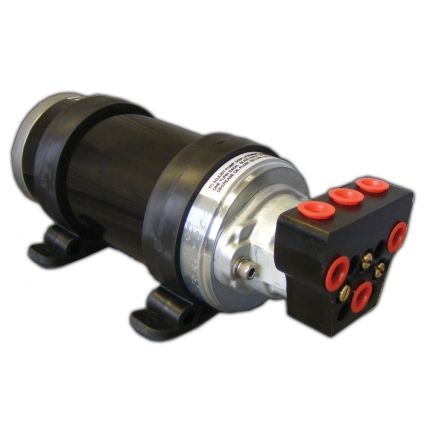

Octopus Autopilot Pump Type 2 - Adjustable Reversing Pump - 12v Up To 18 Ci Cylinder
Condition: New
Free Ground Shipping*
Octopus Autopilot Pump Type 2 - Adjustable Reversing Pump - 12v Up To 18 Ci Cylinder
Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder
Now with ORB Port Connection manifold
Reversing pumps are used when hydraulic steering is fitted on boats up to 65 feet L.O.A. (depending on rudder torque). The pumps are switched on by the automatic pilot and make a steering correction to left or right determined by the direction of rotation of the pump motor. The motors are of the permanent magnetic type and reversing direction is accomplished by reversing the motor input current.
The pump has only three moving parts and requires no complicated check valves to prevent rudder movement when de-energized. Output flow is completely adjustable to 50% of rated flow allowing the pump output to be adjusted precisely to the volume of steering cylinder fitted. The pump is exceptionally reliable and delivers more than twice the hydraulic output per watt of input than gear pumps manufactured by competitors.
Motors are heavy duty, a full 85mm in diameter with long brushes and sealed ball bearings for long service life. The molded rubber mounting foot can be rotated to allow the pump to be mounted on any surface.
A useful range of accessories can be used to enhance the pump by incorporating added valves and solid state FET switching. The valves mount directly to the pump body. The FET switch mounts adjacent to the pump. No other autopilot pump made offers such advantages.
Benefits of the Octopus Reversing Pumps
Piston pump technology giving higher efficiency and accuracy Fewer moving parts giving increased reliability Variable flow rate to make sure the pump is matched as accurately as possible to the manual steering system Professional cut off valves for simple servicing.
Features:
- Average Current 4-6 amps
- Max Current 19amps
- 12vDC
- Cylinder Size: 11-22ci
- Flow Rate(adjustable): 600cc - 1.2 litre/min
Manufacturer Part Number: OCTAF1212
| Special Shipping Message | Free Ground Shipping* |
|---|---|
| Manufacturer Part Number: | OCTAF1212 |
| Specifications: |
|
