Ram Mount Flat Surface Horizontal Single Swing Arm Mount

Rating:
97% of 100

Condition: New

Special Price $78.99 Regular Price $88.49
Quantity in Stock: 5
SKU
RAMRAM-109HU

Free Ground Shipping*

To Ship Out Next Business Day, Order This Item in the Next


Ram Mount Flat Surface Horizontal Single Swing Arm Mount

RAM Flat Surface Horizontal Single Swing Arm Mount

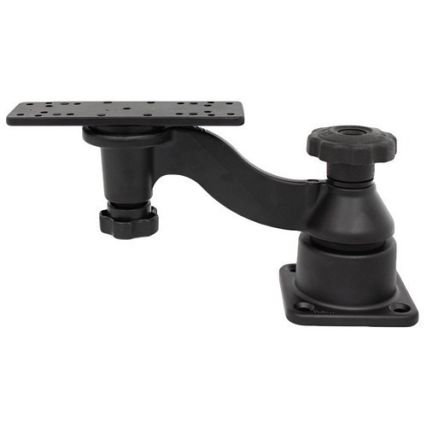

The RAM single swing arm mount consists of a 6" long BENT swing arm mounted on a horizontal surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Dimensions:
  • Center of knob to center of ball socket: 6"
  • Overall length of swing arm assembly: 10.75"
  • Overall height: 5.6"
  • Height from base to top of knob: 4.91"

Material:
Powder Coated Marine Grade Aluminum

Note:The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Manufacturer Part Number: RAM-109HU
More Information
Special Shipping Message Free Ground Shipping*
Manufacturer Part Number: RAM-109HU
Write Your Own Review
You're reviewing:Ram Mount Flat Surface Horizontal Single Swing Arm Mount
Your Rating
Customer Questions
What is the distance center to center on the base plate mounting holes.
The hole pattern for Bottom Plate: 2.5" x 2.5".
What are the dimensions of the mounting base?
Top Plate: 6.25" x 2" // Bottom Plate: 3.47" x 3.47"
Can you please tell me the mounting base dimensions and the hole spacing for the 4 holes? Click READ MORE to see a photo
Plate dimensions: Top Plate: 6.25" x 2" Bottom Plate: 3.47" x 3.47"   Hole Spacing: Top Plate: See Drawing Bottom Plate: 2.5" x 2.5"
Is any of the installation hardware included?
The mounting hardware is not included with this item.
