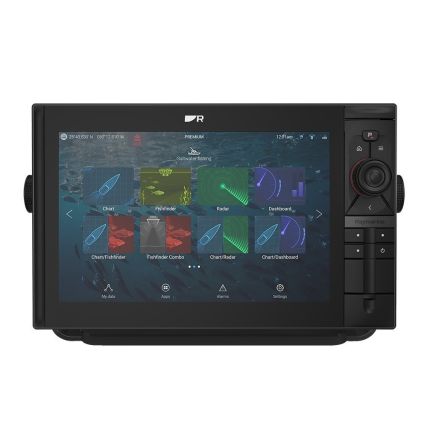

Raymarine Axiom 2 Pro 12 S 12" Chartplotter/Fishfinder - No Chart Or Transducer
Condition: New
Free Two Day Shipping*
Raymarine Axiom 2 Pro 12 S 12" Chartplotter/Fishfinder - No Chart Or Transducer
Axiom 2 Pro 12 S 12" Chartplotter/Fishfinder - No Chart or Transducer
Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro S chartplotters feature built-in single channel High CHIRP sonar- the ideal sonar solution for reliable depth sounding and underwater exploration. Available in 9, 12, or 16-inch display sizes, Axiom Pro 2 is the perfect cruising companion.
Features:
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
- Integrated High CHIRP sonar with transom, in-hull, and low-profile through-hull CPT-S series transducer options
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems
Specifications:
Connections:
- Digital Video & Audio Out Connection: HDMI Out Micro connector type D’
- External GPS Antenna Connection: TNC connector
- Accessory connection: USB Micro B (rear–charging, external storage device or RCR-SD/USB Accessory (A80440)
- Ethernet connection: RayNet (10/100/1,000 Mbits/s) x2
- External storage: MicroSD card slot x2 (front)
- Chart options: Navionics+ or Navionics Platinum or C-map 4D Software, Lighthouse North America
- NMEA 2000 connection: DeviceNet connector
- Analog video connections: BNC Analog video input (on power cable)
- Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
- Transducer connection: 25-pin RealVision type connector (requires adaptor cable)
- Audio connections: Left and Right RCA connectors via Power/Video/Audio cable
GPS:
- GNSS compatibility: GPS, Galileo, GLONASS, Beidou
Sonar:
- Channels: CHIRP conical sonar ( USES CPT-S TRANSDUCERS with adapter cable A80490)
- Depth range: 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
Lighting:
Illumination: Axiom 2 Pro 9 1300 nits / 1300 cd/m2, Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2
Storage:
- Internal storage: 64 GB Solid State
Manufacturer Part Number: E70655

| Special Shipping Message | Free Two Day Shipping* |
|---|---|
| Manufacturer Part Number: | E70655 |
| Specifications: |
|
