Raymarine Type 1 Pump 12v

Rating:
87% of 100

Condition: New

$604.99
Quantity in Stock: 23
SKU
RAYM81120

Free Ground Shipping*

To Ship Out Next Business Day, Order This Item in the Next
Bread Checkout

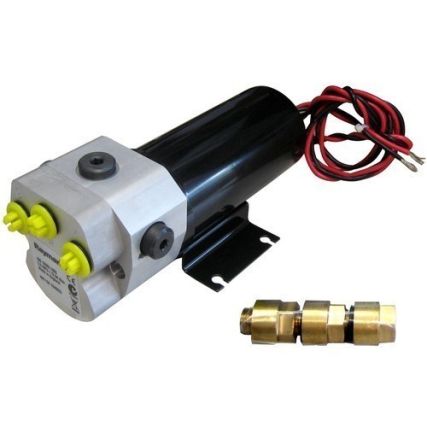

Raymarine Type 1 Pump 12v
Raymarine M81120 Type I Pump M81120


Type 1 Pump 12volt
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.

The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack

Corepack Used S1 or S1G

Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V
750psi (50bar)


(no load) 67in/min (1000cc/min)



Corepack Used S2 or S2G

Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V
750psi (50bar)

Peak Flow Rate
(no load) 67in/min (1000CC/min)


Manufacturer Part Number: M81120
