Velair I09 9,000 Btu 12v Dc Variable Speed Smart Marine Air Conditioner W/Reverse-Cycle Heat
Condition: New
Free Ground Shipping*
Velair I09 9,000 Btu 12v Dc Variable Speed Smart Marine Air Conditioner W/Reverse-Cycle Heat

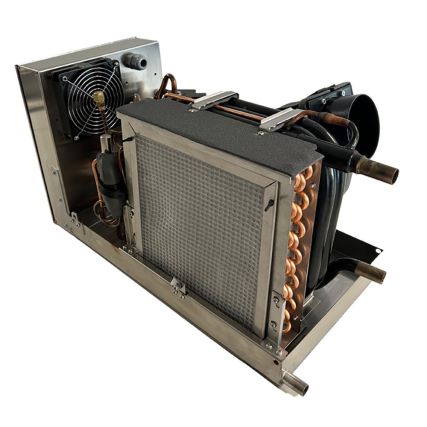

i09 9,000 BTU 12V DC Variable Speed Smart Marine Air Conditioner with Reverse-Cycle Heat
The Velair compact DC air conditioning units are powered directly by 12 volts from the boat’s battery bank, without the need for a generator or inverter.
VSD Inverter Smart technology offers the advantages of eliminating power peaks at start-up, maximum energy efficiency, and significantly reduced compressor noise and vibration during operation.
The twin rotary compressor with a brushless permanent magnet synchronous motor (PMSM) varies its rotation speed to continuously adapt to the difference between the set/requested temperature and the ambient temperature detected by the sensor integrated into the control panel. This ensures highly precise room temperature control in all conditions, with minimal noise and vibration. The outgoing air flow is kept constant thanks to DC brushless variable speed technology fans, which can be rotated for easier on-board installation.
Specifications:
- Cooling Capacity Range: 2500-9000 BTU/h
- Power Supply Voltage: 12 Volts Direct Current (12VDC)
- Power Consumption Cooling (Max): 45 Amps
- Power Consumption Eco Mode: 18 Amps
- Max Air Flow: 200 CFM
- Air Exit Duct Diameter: 4"
- Return Grill Minimum Size: 62 in2
- Supply Grill Minimum Size: 39 in2
- Minimum Seawater Flow: 3.2 GPM
- Refrigerant: R32 (330g)
- Weight: 55.1 LBS
- Cooling unit dimensions (with electric box): 22.5" x 12.6" x 12.6"
- Control Panel Cable Length: 26'/8m
Velair air conditioners are designed and manufactured in Italy and comply with electromagnetic compatibility (EMC) regulations.
Compact Velair DC air conditioning units include a Smart M7 Touch wall-mount control panel with an elegant, ultra-thin design and integrated room temperature sensor, electronic LED control with touch interface, and a magnetic installation frame on a standard 503-sized box that does not require screws for connection to the panel.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Manufacturer Part Number: 26254E
