Veratron Professional 85mm (3-3/8") Rudder Angle Indicator F/Nmea 0183

Condition: New

Minimum Advertised Price: $203.39
Quantity in Stock: 4
SKU
VERB00067401

Free Ground Shipping*

To Ship Out Next Business Day, Order This Item in the Next

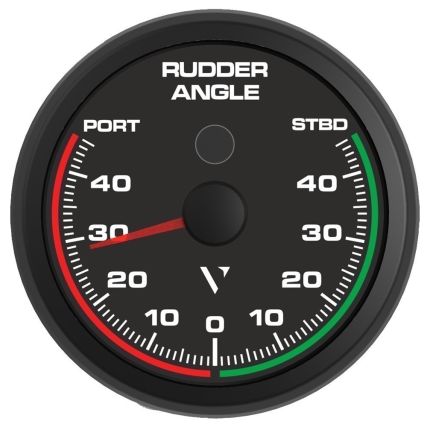

Veratron Professional 85mm (3-3/8") Rudder Angle Indicator F/Nmea 0183

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183

Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270° dial scale and Red illumination which makes it well readable and accurate in the indication.

It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30°C to +80°C and IPX7 protection class.

Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.

The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.

Features:

  • Designed for NMEA 0183
  • Easy programing and installation

Technical Specifications:

  • Operating Voltage - 8 to 32 V
  • Protection Class - IP6K7
  • Illumination - Red LED
  • Dial - Black w/graphics
  • Pointer - Red Illuminated
  • Lens - Plastic Double Lens (anti-reflective)
  • Operating Temp. - -40°C to 115°C
  • Connector - Molex MX150 - 12 pin

In the Box:

  • Gauge
  • Wire Harness
  • Mounting Spinlock
  • Safety Instructions

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: B00067401
More Information
Special Shipping Message Free Ground Shipping*
Manufacturer Part Number: B00067401
Specifications:
  • Voltage - Input Range (Volts) = 8-32v
  • Series = OceanLink
  • Gauge Type = Rudder Angle
  • Gauge Size = 3-3/8"
  • Box Set = No
