Veratron 85mm (3-3/8") Vmh-35s Multifunction Gauge W/Voltage Dependent (0-5v) Sensor Input

Be the first to review this product

Condition: New

Minimum Advertised Price: $267.29

Quantity in Stock: 2

SKU

VERB00143501

Free Ground Shipping*

To Ship Out Today, Order This Item in the Next

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

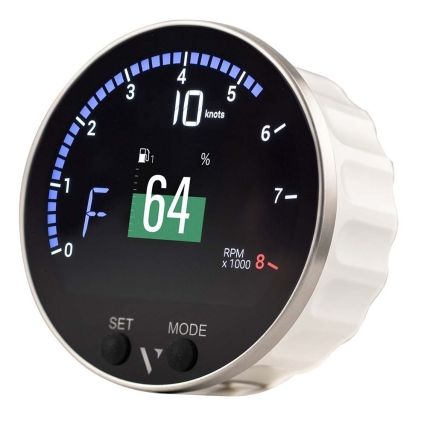

Veratron 85mm (3-3/8") Vmh-35s Multifunction Gauge W/Voltage Dependent (0-5v) Sensor Input

85mm (3-3/8") VMH-35S Multifunction Gauge wtih Voltage Dependent (0-5V) Sensor Input

The ideal solution for your outboard engine monitoring. Digital sun-readable display with analog inputs and NMEA 2000 converter, the VMH 35-S embeds a high-performance GNSS receiver which makes it the perfect solution for your boat cockpit.

The first in its new VMH line of premium marine gauges, the Veratron VMH 35-S is engineered for single inboard or outboard engine applications.

Powered by the latest microprocessor, the Veratron VMH 35-S is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.

The VMH 35-S has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8000 with a programmable overspeed alarm, tank levels, battery status, GPS, and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.

Features:

Integrated high-performance GNSS receiver
Intelligent Battery Sensor (IBS) port
Analog inputs: 1x Resistive /1x 0-5 V / 1x Frequency
Stylish black-glass design with brushed stainless-steel ring
Front ring: Brushed stainless steel
Front lens: Mineral glass
Display: Color IBN + 1.44" TFT optically bonded
Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
NMEA 2000 certified with embedded analog gateway
Connectivity: NMEA 2000, LIN, EasyLink

Technical Specifications:

Nominal voltage: 12V
Operating voltage: 9-16V
Current consumption: ≤ 150 mA (normal mode)
Protection class: IP X7
Dimensions: 100 mm (outer) and 85 mm (mounting hole)

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: B00143501

Quick Specs

More Information
Special Shipping Message	Free Ground Shipping*
Manufacturer Part Number:	B00143501
Specifications:	Box Set = No Gauge Size = 3-3/8" Gauge Type = Multifunction Series = VMH Voltage - Input Range (Volts) = 12v
