The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

Input Voltage Range: 20-35 V
Under Voltage Shut Down: 14 V
Under Voltage Restart: 15 V
Nominal Output Voltage: 12.2 V
Output Voltage Adjust Range: 10-15 V
Output Voltage Tolerance: +/- 0,2 V
Output Noise: 2 mV rms
Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 30 A
Maximum Output Current (10 S) at Nominal Output Voltage: 45 A
Short Circuit Output Current: 60 A
Cont. Output Power at 25 Degrees C: 430 W
Cont. Output Power at 40 Degrees C: 360 W
Efficiency: 88 %
No Load Input Current (2): < 100 mA
Current Consumption: < 200uA when disabled via its remote port
Galvanic Isolation: 200 VDC between input, output, and case
Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
Humidity: Max. 95 % non-condensing
DC Connection: Screw terminals
Maximum Cable Cross-Section: 16 mm² AWG6
Weight: 1.3 kg (3 lb)
Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
Safety Standards: EN 60950
Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive Standards: ECE R10-5

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Please contact your dealer for any returns, repairs or support issues related to this product.

Manufacturer Part Number: ORI241240110

More Information
Special Shipping Message	Free Two Day Shipping*
Manufacturer Part Number:	ORI241240110
Specifications:	Charger Input - Voltage = 24v Charger Output - Amps = 30a Charger Output Voltage = 12v

Write Your Own Review

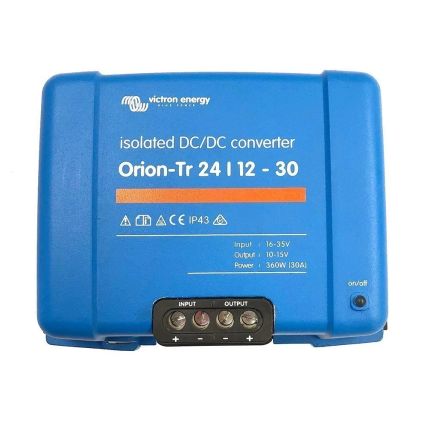

You're reviewing:Victron Orion-Tr Dc-Dc Converter - 24 Vdc To 12 Vdc - 30amp Isolated
