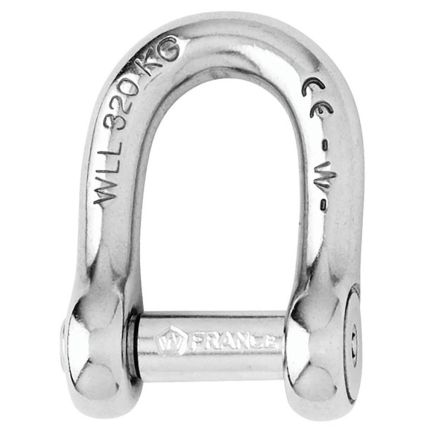

Wichard Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32"
Condition: New
Free Ground Shipping*
Wichard Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32"
Self-Locking Allen Head Pin D Shackle - 12mm Diameter - 15/32"
Features:
- Self-locking shackle with allen head pin D forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Ideal to link chains and anchor
- On the halyard, avoids damaging the sails
- To be used when the clutter is reduced
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 4580 / (kg) 2080
- WLL: (lb) 2640 / (kg) 1200
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.412 / (g) 187
Dimensions:
- A: (inch) 1 17/32" / (mm) 39
- B: (inch) 15/16" / (mm) 24
- C: (inch) 15/32" / (mm) 12
- D: (inch) 15/16" / (mm) 24
- D diameter: (inch) 15/32" / (mm) 12
- E: (inch) 25/64" / (mm) 10
- F: (inch) 2 7/8" / (mm) 73
- G: (inch) 1 59/64" / (mm) 49
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
Manufacturer Part Number: 01306
| Special Shipping Message | Free Ground Shipping* |
|---|---|
| Manufacturer Part Number: | 01306 |
